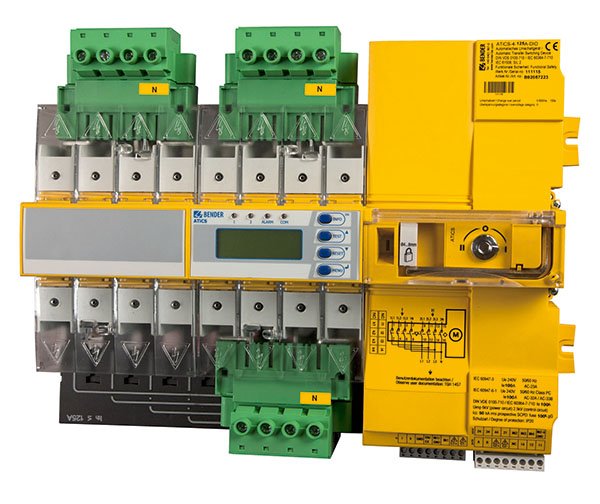

ATICS®-…-DIO
The ATICS® transfer switching devices provide all functions for changeover between two independent power supplies. The integration of both the electronic system and the switching elements in one flat, compact device reduces space requirements in the switchgear cabinet, minimises the amount of wiring, and reduces the fault probability. For maximum reliability, ATICS® was designed in strict accordance with the guidelines for functional safety.
Connectors at all connecting wires in combination with bypass switches enable ATICS® to be tested during ongoing operation. In case of need for service, it is possible to repair or replace the device without interrupting the power supply. ATICS® considerably enhances the safety level in industry and other sensitive environments like hospitals.
The ATICS® transfer switching devices provide all functions for changeover between two independent power supplies. The integration of both the electronic system and the switching elements in one flat, compact device reduces space requirements in the switchgear cabinet, minimises the amount of wiring, and reduces the fault probability. For maximum reliability, ATICS® was designed in strict accordance with the guidelines for functional safety.
Connectors at all connecting wires in combination with bypass switches enable ATICS® to be tested during ongoing operation. In case of need for service, it is possible to repair or replace the device without interrupting the power supply. ATICS® considerably enhances the safety level in industry and other sensitive environments like hospitals.
Caratteristiche
Perfectly suitable for space-saving installation/retrofitting
- Compact device for designing safety power supplies with functional safety more easily, in accordance with DIN VDE 61508 (SIL 2), in computing centres, industry, or in group 2 medical locations in accordance with DIN VDE 0100-710 (VDE 0100-710)/IEC 60364-7-710
- All-in-one: Integration of switch disconnector and control electronics
- Compact design
- Solutions for any application
Convenient installation and commissioning
- Saves time and money
Safe operation
- Switch disconnector contacts of robust design
- Mechanical locking
- Manual operation directly at the device
- Functional safety SIL 2
- Certification by TÜV SÜD
Uninterrupted maintenance
- Plug connectors and optional bypass switch
- Excellent communication and parameterisation options
Applicazioni
- Where sensitive electrical installations are involved, e.g. in medical locations of Group 2, industry or computing centre, safe and reliable power supply must be ensured, also in the event of malfunctions. Redundant supply lines significantly contribute to achieve safe and secure power supply.
ATICS®-…-DIO Variante/i
ATICS®…-DIO 2-pole
| Type | Version | Rated operational current Ie | Scope of delivery | Art. No. |
|---|---|---|---|---|
| ATICS-2-63A-DIO | 2-pole | AC 63 A | 1 x STW3, bridge, connectors, terminal cover | B92057212 |
| ATICS-2-80A-DIO | 2-pole | AC 80 A | 1 x STW3, bridge, connectors, terminal cover | B92057213 |
| ATICS-BP-2-63A-SET | Bypass switch set | AC 63 A | Bridge, terminal cover, auxiliary contacts, LEDs green/red | B92057252 |
| ATICS-BP-2-80A-SET | Bypass switch set | AC 80 A | Bridge, terminal cover, auxiliary contacts, LEDs green/red | B92057253 |
ATICS®…-DIO 4-pole
| Type | Version | Rated operational current Ie | Scope of delivery | Art. No. |
|---|---|---|---|---|
| ATICS-4-80A-DIO | 4-pole | AC 80 A | 4 x STW3, bridge, connectors, terminal cover | B92057222 |
| ATICS-4-125A-DIO | 4-pole | AC 125 A | 4 x STW4, bridge, connectors, terminal cover | B92057223 |
| ATICS-4-160A-DIO | 4-pole | AC 160 A | 4 x STW4, bridge, terminal cover | B92057224 |
| ATICS-BP-4-80A-SET | Bypass switch set | AC 80 A | Bridge, terminal cover, auxiliary contacts, LEDs green/red | B92057260 |
| ATICS-BP-4-125A-SET | Bypass switch set | AC 125 A | Bridge, terminal cover, auxiliary contacts, LEDs green/red | B92057262 |
| ATICS-BP-4-160A-SET | Bypass switch set | AC 160 A | Bridge, terminal cover, auxiliary contacts, LEDs green/red | B92057264 |
Accessori opzionali per ATICS®-…-DIO
| Type | Description | Art. No. |
|---|---|---|
| STW3 | Measuring current transformer (short-circuit monitoring) for ATICS® < 100 A | B98021000 |
| STW4 | Measuring current transformer (short-circuit monitoring) for ATICS® < 100 A | B98021001 |
Download per ATICS®-…-DIO
| Nome | Tipo | Dimensione | Lingua | Timestamp | D-/B-Numero |
|---|---|---|---|---|---|
| Atics | Dichiarazioni di conformità CE | 87.7 KB | 2022/08/1212.08.2022 | ||
| ATICS-…-DIO | Quickstarts | 1.8 MB | DE | 2024/05/2929.05.2024 | D00080 |
| ATICS-…-DIO | Quickstarts | 1.8 MB | EN | 2024/05/2929.05.2024 | D00080 |
| ATICS-…-DIO | Manuali di istruzioni | 29.5 MB | DE | 2024/10/1010.10.2024 | D00080 |
| ATICS-…-DIO | Manuali di istruzioni | 30.4 MB | EN | 2024/10/1010.10.2024 | D00080 |
| ATICS-…-DIO | Data sheet | 425.1 KB | DE | 2021/12/0101.12.2021 | D00080 |
| ATICS-…-DIO | Data sheet | 424.3 KB | EN | 2021/12/0101.12.2021 | D00080 |
| ATICS-…-DIO | Data sheet | 634.5 KB | ES | 2019/05/1313.05.2019 | D00080 |
| ATICS-…-DIO Checkliste | Manuali di istruzioni | 416.4 KB | DE | 2024/10/2828.10.2024 | D00080 |
| ATICS-…-DIO Checklist | Manuali di istruzioni | 410.1 KB | EN | 2024/10/2828.10.2024 | D00080 |
| ATICS® Informationsblatt | Depliant prodotto | 750.0 KB | DE | 2019/05/1313.05.2019 | D00046, D00080 |
| ATICS® Informationleaflet | Depliant prodotto | 743.7 KB | EN | 2019/05/1313.05.2019 | D00046, D00080 |
| ATICS-BP-SET | Manuali di istruzioni | 2.1 MB | DE | 2019/05/1313.05.2019 | D00162 |
| ATICS-BP-SET | Manuali di istruzioni | 2.1 MB | EN | 2019/05/1313.05.2019 | D00162 |
| ATICS®-DIO | Data sheet | 1.2 MB | IT | 2019/05/1313.05.2019 | D00080 |
| ATICS® Kompakt. Sicher. Wirtschaftlich. | Depliant prodotto | 2.2 MB | DE | 2023/11/0808.11.2023 | D00046, D00080 |
| ATICS® Compact. Reliable. Cost-effective. | Depliant prodotto | 2.1 MB | EN | 2023/11/0808.11.2023 | D00046, D00080 |
