Serie S-IPS-F/EDS/UMA/BP

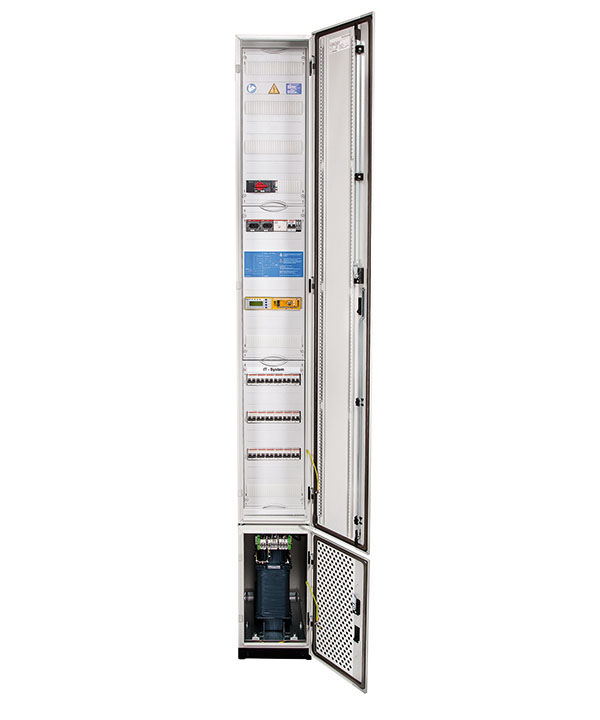

Series VIT-AFSBY isolated power panels are equipped with an isolation transformer as well as with a changeover and monitoring module including all necessary monitoring components as to DIN VDE 100-710 for IT systems:

Changeover device and voltage monitoring
Insulation monitoring
Load and temperature monitoring
Insulation fault locator
Bypass Switch

The secondary side of the isolation transformer is equipped with at least 6 two-pole circuit breakers. Group 2 sockets are being connected to these.
In order to reduce or avoid noise disturbance by air circulating fans, waste heat is conducted by free convection.

Domande? Contattaci!

Series VIT-AFSBY isolated power panels are equipped with an isolation transformer as well as with a changeover and monitoring module including all necessary monitoring components as to DIN VDE 100-710 for IT systems:

Changeover device and voltage monitoring
Insulation monitoring
Load and temperature monitoring
Insulation fault locator
Bypass Switch

The secondary side of the isolation transformer is equipped with at least 6 two-pole circuit breakers. Group 2 sockets are being connected to these.
In order to reduce or avoid noise disturbance by air circulating fans, waste heat is conducted by free convection.

Domande? Contattaci!

Caratteristiche

Automatic changeover and monitoring device ATICS® including monitoring of i.e.:
- Voltage of incoming supply
- Output voltage
- Correct operating times
- Changeover times
- Insulation resistance
- Load current
- Transformer temperature
- At least 6 two-pole circuit breakers B16A
- Insulation fault monitoring device (EDS)
- Bypass switch
- Isolating transformer (3150VA – 8000VA)

Variable changeover time t ≤ 0.5 …15s
Exchange of information by means of bus technology
Connection facility for remote alarm and operator panels CP9xx / CP305
Sheet steel housing as to DIN VDE 0100-710 (VDE 0100-710): 2002-11, section 710.51.2.2.
Designed in accordance with the requirements of applicable standards
Voluntary certification of changeover device by the independent German technical service, testing and inspection organization (TÜV)

Applicazioni

For intesive care units with equiment for insulaion fauls location
