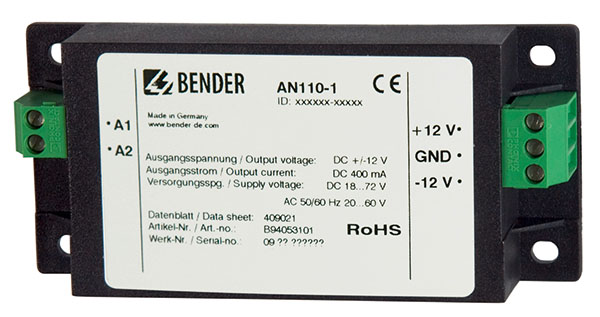

AN110
The power supply unit AN110 is used to supply W…AB series measuring current transformers. The CTs are to be supplied with a symmetrical supply voltage of DC ± 12 V using a prefabricated WXS… series connecting cable.
The power supply unit is capable of supplying up to six W…AB series measuring current transformers.
The power supply unit AN110 is used to supply W…AB series measuring current transformers. The CTs are to be supplied with a symmetrical supply voltage of DC ± 12 V using a prefabricated WXS… series connecting cable.
The power supply unit is capable of supplying up to six W…AB series measuring current transformers.
Caratteristiche
- Power supply for measuring current transformers W...AB series
AN110 Variante/i
| Type | Supply voltage US* | Output voltage | Art. No. |
|---|---|---|---|
| AN110-1 | AC 20…60 V/DC 18…72 V | ± 12 V | B94053101 |
| AN110-2 | AC 90…264 V/DC 100…353 V | ± 12 V | B94053102 |
* Absolute values
Accessori opzionali per AN110
Connecting cables for W…AB measuring current transformers
| Type | Length | Art. No. |
|---|---|---|
| WXS-100 | 1 m | B98080506 |
| WXS-250 | 2,5 m | B98080507 |
| WXS-500 | 5 m | B98080508 |
| WXS-1000 | 10 m | B98080509 |
Download per AN110
| Nome | Tipo | Dimensione | Lingua | Timestamp | D-/B-Numero |
|---|---|---|---|---|---|
| AN110 | Dichiarazioni di conformità CE | 84.1 KB | 2022/08/1212.08.2022 | ||
| AN110 | Manuali di istruzioni | 245.5 KB | DE | 2019/05/1313.05.2019 | D00097 |
| AN110 | Manuali di istruzioni | 245.5 KB | EN | 2019/05/1313.05.2019 | D00097 |
| AN110 | Data sheet | 264.8 KB | DE | 2019/05/1313.05.2019 | D00097 |
| AN110 | Data sheet | 221.5 KB | EN | 2019/05/1313.05.2019 | D00097 |
| AN110 | Data sheet | 226.4 KB | ES | 2019/05/1313.05.2019 | D00097 |
