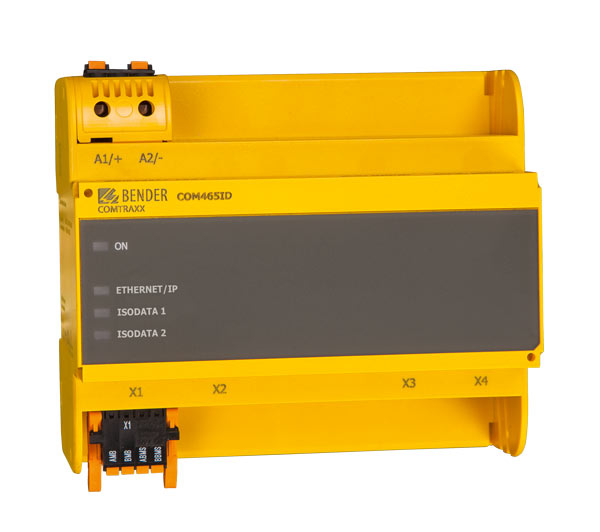

COMTRAXX® COM465ID
- Integration of Bender isoData devices
- BCOM, Modbus TCP and Bender isoData as communication interfaces
- Data transmission to POWERSCOUT®
The COM465ID gateway offers the possibility to record data using the Bender interfaces isoData and BCOM. This data can then be provided via Modbus TCP and POWERSCOUT®.
Existing interfaces:
- RS-485: isoData
- Ethernet: BCOM, Modbus TCP, SNMP
- Integration of Bender isoData devices
- BCOM, Modbus TCP and Bender isoData as communication interfaces
- Data transmission to POWERSCOUT®
The COM465ID gateway offers the possibility to record data using the Bender interfaces isoData and BCOM. This data can then be provided via Modbus TCP and POWERSCOUT®.
Existing interfaces:
- RS-485: isoData
- Ethernet: BCOM, Modbus TCP, SNMP
Caratteristiche
- Condition Monitor for Bender systems
- Integrated modular gateway between Bender systems and TCP/IP enables remote access via LAN, WAN or the Internet
- Range of functions adjustable through function modules
- Ethernet (10/100 Mbit/s) for remote access via LAN, WAN or the Internet
- Integration of devices that are connected via IsoData or BCOM
Applicazioni
- Optimum display and visualisation of device and plant statuses in the web browser
- Collecting information from the Bender system and making it available via Modbus TCP
- Specific system overview through individual installation description
- Selective notification to various users in case of alarms
- Information from the Bender system can be transmitted to POWERSCOUT® for analysis and archiving.
- Commissioning and diagnosis of Bender systems
- Remote diagnosis, remote maintenance
COMTRAXX® COM465ID Variante/i
| Type | Supply voltage/ Frequency range US | Power consumption | Application | Art. No. |
|---|---|---|---|---|
| COM465ID-230V | AC/DC 24…240 V, 50…60 Hz | ≤ 6,5 VA/≤ 4 W | Condition Monitor with an integrated gateway: Bender system/Ethernet | B95061070 |
Function modules (software license)
| Package | Application | Art. No. |
|---|---|---|
| Function module A | Individual text messages for all devices/ channels, device failure monitoring, e-mail in the event of an alarm, device documentation | B75061011 |
| Function module B | Provision of data via via Modbus TCP, Modbus RTU, SNMP and PROFINET | B75061012 |
| Function module C | Parameter setting of all integrated devices, device backups | B75061013 |
| Function module D | Visualisation application | B75061014 |
| Function module E | Virtual devices | B75061015 |
| Function module F | Integration of third-party devices | B75061016 |
Download per COMTRAXX® COM465ID
| Nome | Tipo | Dimensione | Lingua | Timestamp | D-/B-Numero |
|---|---|---|---|---|---|
| COM46x | Dichiarazioni di conformità CE | 87.3 KB | 2022/08/1212.08.2022 | ||
| COM465ID Update V4.7.7 | Software | 29.5 MB | 2023/04/2424.04.2023 | D00368 | |
| COM465ID | Data sheet | 8.1 MB | DE | 2024/05/1313.05.2024 | D00368 |
| COM465ID | Data sheet | 8.1 MB | EN | 2024/05/1313.05.2024 | D00368 |
| COM465ID | Manuali di istruzioni | 6.0 MB | DE | 2023/10/1111.10.2023 | D00368 |
| COM465ID | Quickstarts | 1.2 MB | DE | 2023/10/1111.10.2023 | D00368 |
| COM465ID | Quickstarts | 1.2 MB | EN | 2023/10/1111.10.2023 | D00368 |
| COM465ID | Manuali di istruzioni | 6.0 MB | EN | 2023/10/1111.10.2023 | D00368 |
| COM465ID Update V4.00 | Software | 37.4 MB | 2023/03/2828.03.2023 | D00368 |
