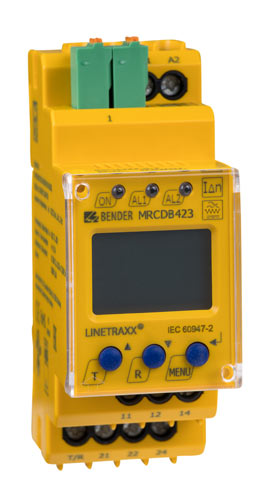

LINETRAXX® MRCDB423
Modular residual current device type B for additional protection (protection against indirect contact) in earthed systems (TN and TT systems)
The AC/DC sensitive MRCDB423 with the corresponding CTUB101-CTBC… measuring current transformers are used as additional protection (protection against indirect contact) in earthed systems (TN and TT systems) in which AC or DC fault currents may occur. Part of these systems are particularly loads containing six-pulse rectifiers or one-way rectifiers with smoothing, such as converters, battery chargers, construction site equipment with frequency-controlled drives.
Since the values are measured with measuring current transformers, the MRCDB423 is almost independent of the nominal voltage and the operating current of the monitored system.
The residual operating current IΔn2, the response delay ton2 as well as the currently measured residual current IΔ are shown on the standard display.
By using an MRCDB423 with a suitable current transformer and a switching element with isolating properties, the device combination fulfils the requirements of IEC 60947-2 Annex M for an MRCD protective device.
The application is specifically intended for protection goals such as protection of persons, fire protection and plant protection. The switching element must not exceed a switch-off time of 17 ms.
Modular residual current device type B for additional protection (protection against indirect contact) in earthed systems (TN and TT systems)
The AC/DC sensitive MRCDB423 with the corresponding CTUB101-CTBC… measuring current transformers are used as additional protection (protection against indirect contact) in earthed systems (TN and TT systems) in which AC or DC fault currents may occur. Part of these systems are particularly loads containing six-pulse rectifiers or one-way rectifiers with smoothing, such as converters, battery chargers, construction site equipment with frequency-controlled drives.
Since the values are measured with measuring current transformers, the MRCDB423 is almost independent of the nominal voltage and the operating current of the monitored system.
The residual operating current IΔn2, the response delay ton2 as well as the currently measured residual current IΔ are shown on the standard display.
By using an MRCDB423 with a suitable current transformer and a switching element with isolating properties, the device combination fulfils the requirements of IEC 60947-2 Annex M for an MRCD protective device.
The application is specifically intended for protection goals such as protection of persons, fire protection and plant protection. The switching element must not exceed a switch-off time of 17 ms.
Caratteristiche
- AC/DC sensitive MRCD type B in accordance with IEC 60947-2 Annex M
- Use as modular residual current protective device for additional protection in earthed systems
- Operating characteristic type B in accordance with IEC 60755
- RMS value measurement of the residual current
- Alarm and prewarning indication via LEDs
- Alarm and prewarning output via relays (K1/K2)
- Control of a switching element with isolating properties via relay K2
- Measuring current transformer connection monitoring
- Fault memory
Applicazioni
- Additional protection (protection against indirect contact) in earthed systems (TN and TT systems)
LINETRAXX® MRCDB423 Variante/i
| Type | Response range IΔn | Rated frequency | Supply voltage US* | Art. No. |
|---|---|---|---|---|
| MRCDB423-D-1 | 30 mA…3 A | 0…2000 Hz | DC 9,6…94 V / AC 42…460 Hz, 16…72 V | B94043055 |
| MRCDB423-D-2 | 30 mA…3 A | 0…2000 Hz | DC 70…300 V / AC 42…460 Hz, 70…300 V | B94043056 |
* Absolute values of the voltage range
Accessori opzionali per LINETRAXX® MRCDB423
External measuring current transformers
| Type | CT diameter | Shield | Art. No. |
|---|---|---|---|
| CTUB101-CTBC20 | ø 20 | – | B78120010 |
| CTUB101-CTBC20P | ø 20 | ✓ | B78120020 |
| CTUB101-CTBC35 | ø 35 | – | B78120012 |
| CTUB101-CTBC35P | ø 35 | ✓ | B78120022 |
| CTUB101-CTBC60 | ø 60 | – | B78120014 |
| CTUB101-CTBC60P | ø 60 | ✓ | B78120024 |
| CTUB101-CTBC120 | ø 120 | – | B78120016 |
| CTUB101-CTBC120P | ø 120 | ✓ | B78120026 |
| CTUB101-CTBC210 | ø 210 | – | B78120018 |
| CTUB101-CTBC210P | ø 210 | ✓ | B78120028 |
Connection cable measuring current transformer – MRCDB423
| Type | Length/m | Art. No. |
|---|---|---|
| CTX-100 | 1 | B98110080 |
| CTX-250 | 2,5 | B98110081 |
| CTX-500 | 5 | B98110082 |
| CTX-1000 | 10 | B98110083 |
Accessories
| Type | Art. No. |
|---|---|
| Mounting clip for screw mounting (one piece per device) | B98060008 |
| Mounting frame XM420 | B990994 |
Download per LINETRAXX® MRCDB423
| Nome | Tipo | Dimensione | Lingua | Timestamp | D-/B-Numero |
|---|---|---|---|---|---|
| UKCA - MRCDB4xx | Dichiarazioni di conformità | 131.7 KB | 2024/10/0707.10.2024 | ||
| MRCDB4xx | Dichiarazioni di conformità CE | 99.1 KB | 2024/10/0707.10.2024 | ||
| MRCDB423 | Data sheet | 681.4 KB | DE | 2021/08/0202.08.2021 | D00396 |
| MRCDB423 | Data sheet | 678.1 KB | EN | 2021/08/0202.08.2021 | D00396 |
| MRCDB423 | Manuali di istruzioni | 2.6 MB | DE | 2021/07/1313.07.2021 | D00396 |
| MRCDB423 | Manuali di istruzioni | 2.5 MB | EN | 2021/07/1313.07.2021 | D00396 |
| MRCDB423 | Data sheet | 680.3 KB | FR | 2021/08/0202.08.2021 | D00396 |
| Modulares Fehlerstromgerät MRCD | Flyer | 96.6 KB | DE | 2021/05/1818.05.2021 | |
| Modular Residual Current Device (MRCD) | Flyer | 96.3 KB | EN | 2021/05/1818.05.2021 | |
| Dispositivo de Corriente Residual Modular MRCD | Flyer | 98.2 KB | ES | 2021/05/1818.05.2021 | |
| Dispositivo differenziale separato a toroide esterno MRCD | Flyer | 115.1 KB | IT | 2021/05/1818.05.2021 | |
| Changed variants of relays from goldplated to silver-plated contacts | Technical information | 166.3 KB | EN | 2022/06/2727.06.2022 | |
| Geänderte Relaisvarianten von vergoldeten Kontakten auf versilberte Kontakte | Technical information | 166.3 KB | DE | 2022/06/2727.06.2022 |
